Uni-Flex Circuits, Inc. is committed to providing quality workmanship and exceptional service. Our vast experience with flexible printed circuitry will provide cost-effective interconnect solutions. Located in the heart of Silicon Valley, our facility is equipped to manufacture various types of flex circuits, from the common single-sided to the more sophisticated flex-rigid constructions.
With our expertise and dedication, some requirements can be fabricated within 24 hours. We can also accommodate larger quantities approaching several thousand pieces on a monthly basis. Our goal is to become your dependable partner for whatever you need in the area of flex circuits.
This single-sided printed circuit board includes just one layer of base material or substrate. One end of the substrate is coated with a thin layer of metal, usually copper because it is a good electrical conductor.

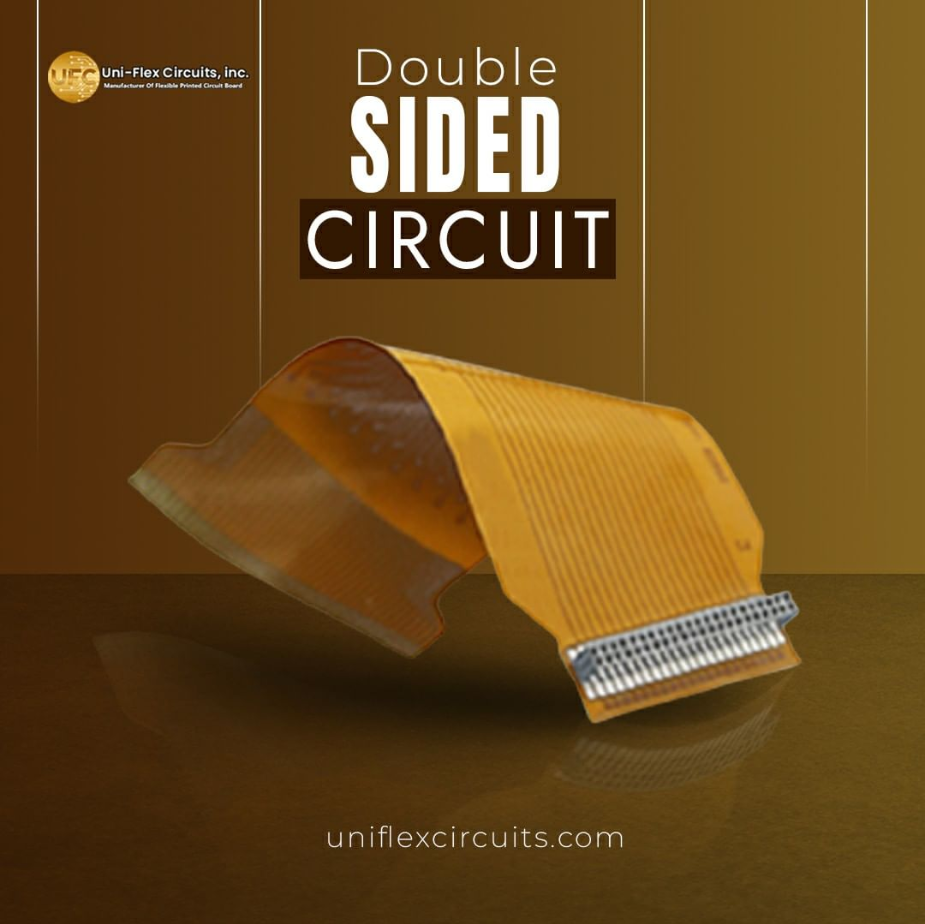

This type of PCBs is much more familiar than single-sided boards. Both sides of the board’s substrate include metal conductive layers, and elements attach to both sides as well. Holes in the PCB let circuits on a single side to attach to circuits on the other side.

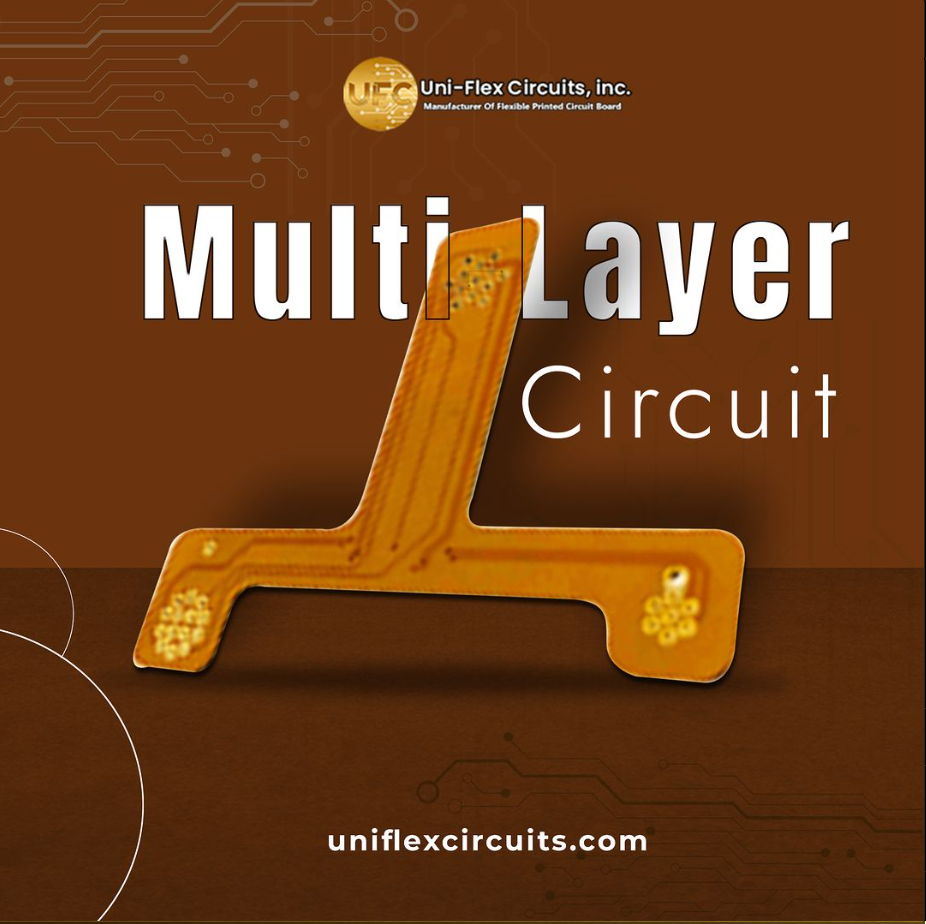

These PCBs further enlarges the density and complexity of PCB designs by adding extra layers beyond the top & bottom layers seen in a configuration of double-sided. With the accessibility of over many layers in a multilayer printed circuit board configurations, multilayer PCBs let designers make very thick and highly compound designs
Rigid-flex boards merge technology from both flexible and rigid circuit boards. An easy rigid-flex board comprises of a rigid circuit board that joints to a flex circuit board. These boards can be more compound if design requests demand.
Maxi-Flex allows an application to be produced at larger than normal sizes, normally found on one or two conductive layers longer than 24″ in length. Maxi-Flex® is designed for your specific application with signal, power and shielding layers in one complete interconnect package.
All Flex is teaming up with medical device manufactures to revolutionize catheter designs. Today’s state of the art designs may include small Flexible Printed Circuits (FPCs) with electrode pads mounted to the mapping baskets, but they have been limited to only 6 or 8 electrodes.
Sculptured Flex technology is a modification of the basic flexible printed circuit board technology, whereby.
High Frequency PCB is a type of PCB which is widely used in applications involving special signal transmission between objects. It is available in frequency range of 500MHz to 2GHz and is an ideal choice for mobile, microwave, radio frequency and high speed design applications.
Customize your flex circuits with common and artwork capabilities. We provide everything you need, which saves you time and money on design and fabrication of flex circuits.Read More
We provide various flex circuit constructions to accommodate customers in multiple industries. Products from single-sided to rigid flex circuits make your electronics fully functional.Read More
Polyimide Films, Thermo-Bond Adhesives, Copper Foils (Rolled-Annealed), Stiffeners, FR-4 in Multi-Layer Flex Circuits, Concerning Your Special RequirementRead More
"I have been looking for a Quality Flex Circuits for my laptop but I couldn't get it, but suddenly one of my friends referred me to Uni-Flex Circuits Inc. It is really great for me to get their services. I would also like to refer to others. Thanks you Uni-Flex Circuits. Thank you."
